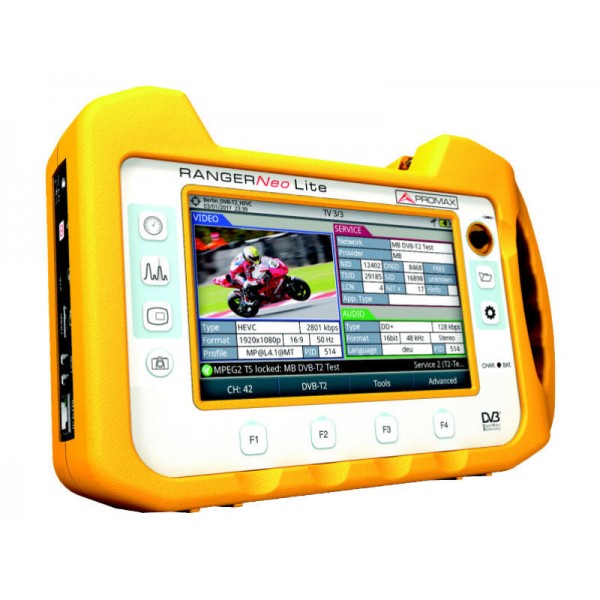

The RANGER Neo Lite is an entry-level Field Strength Meter and Spectrum Analyser that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analysers.

They are intended to help installers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.

HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo Lite field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product (1600 gr) ideal for field work.

• DVB-T2/C2/S2, DSS, Dolby Digital Plus
• ISDB-T/Tb
• Super spectrum analyzer with Triple split display
• Dynamic echoes analysis
• Touch screen
• HEVC H.265 decoding
• Wide band LNB compatibility
• Wi-Fi analyzer

OPERATION MODES

• Hybrid operation: 7” touch screen or conventional buttons

DIGITAL STANDARDS

• DVB-T, DVB-T2, DVB-T2 lite
• DVB-C, DVB-C2
• DVB-S, DVB-S2, DVB-S2 multistream
• ISDB-T/Tb
• DSS, ACM/VCM/CCM

VIDEO CODECS

• MPEG-2, MPEG-4 H.264, HEVC H.265

AUDIO CODECS

• MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus

INPUTS AND OUTPUTS

• Universal RF connector 75 Ω
• HDMI output
• IP input for remote control
• Analogue Video/Audio input
• 2xUSB for data tranferring

FUNCTIONS

• 4K Frame grabber
• Constellation diagram
• LTE ingress test
• Dynamic echoes analysis
• StealthID (instant identification of tuning parameters)
• PLS (Physical Layer Scrambling)
• Ultra fast spectrum analyzer (70 ms sweep time)
• MAX and MIN hold
• FM RDS radio measurement and decoding
• Screenshots and Datalogger for measurement reports
• Beacon-Flyaways for SNG & VSAT
• Wideband LNB
• WiFi 2.4 GHz
• LTE 1.8 GHz
• OTT
• Service recording
• Field strength measurement
• Task planner

RESOLUTION BANDWIDTHS

• 100 kHz

PC CONNECTION (via ethernet interface)

• NetUpdate 4 (free software)
• Free and automatic firmware updates
• User customised channel plans
• Measurement reports and screenshots
