GLOBAL Fibre IRS O2O Converter Maximize

GLOBAL Fibre IRS O2O Converter

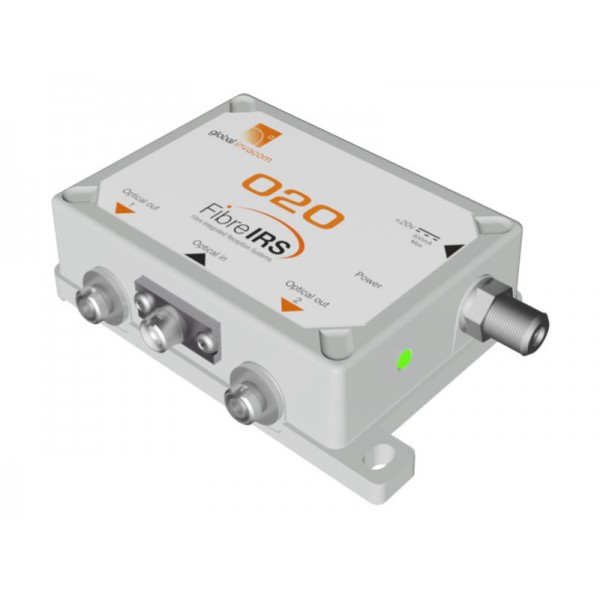

The O2O (Optical to Optical) convertor from Global Invacom is fully compatible with
all the current FibreIRS headend equipment and designed for future compatibility.

Replaces the functionality of the O2E and ODU32 in one compact unit.


More details

Add to cart
    • FibreIRS FC/PC optical input
    • Fully compatible with GI optical LNB, ODU32 & ODU32 (1550)
    • 2 x FC/PC optical outputs
    • Space saving design
    • Small form factor

    FM.DAB,DTT & Satellite (Optical)
    Optical wavelength (Input): 1100nm to 1650nm
    Optical input power: -12dBm -3dBm
    Optical output power: +7dBm
    Return Loss: 20dB

    RF Signal
    RF frequency range (MHz): Min 88 / Max 5450
    Gain variation across band: Max 5dB *
    Gain ripple across 30Mhz: 1dB

    • additional variation can occur due to satellite transmitted signal levels.

    DC specification
    Input voltage: 20V
    Current consumption: 150mA Max

    Connectors
    Input: FC/PC
    Output: 2 x FC/PC
    Power supply: F connector

    Environmental Specification
    Operating temperature: -10°C to +50°C
    Storage temperature: -40°C to +70°C
