Pass-through trunk lines 4 SAT + 1 TV
Taps 4 or 8 SAT & TV
Power-supply 1 x F-type connector
Satellite normal band/wideband selection 1 x manual dip-switch
Power ON
Green/Orange LED for common/STB
power-supply
Earthing 1 x screw connector
Satellite
Trunk band MHz 250 – 2400
Trunk insertion loss dB 4
In/Out return loss dB >10
Input mode Legacy/Wideband (selectable)
Input level dBμV
60 – 90 (in dSCR mode)
65 – 90 (in Legacy mode)
Output mode
BskyB (dSCR)
Legacy (14/18V 0/22KHz)
User-bands per output in dSCR mode up to 16
dSCR output frequencies MHz
980 – 1030 – 1080 – 1130
1280 – 1380 – 1480 – 1530
1580 – 1630 – 1680 – 1730
1780 – 1830 – 1880 – 1930
Taps band in Legacy mode MHz 950 – 2150
Output level dBμV
dSCR: 83 – 95 (adjustable)
Legacy: 80 – 92 (adjustable)
Taps return loss dB >10
Terrestrial
Operating band MHz 40 – 790
Trunk insertion loss dB 3
In/Out return loss dB >10
Gain dB -15 to +5 (adjustable)
Max. output level (overall aggregate throughout
the operating band)
dBμV 105
Taps return loss dB >10

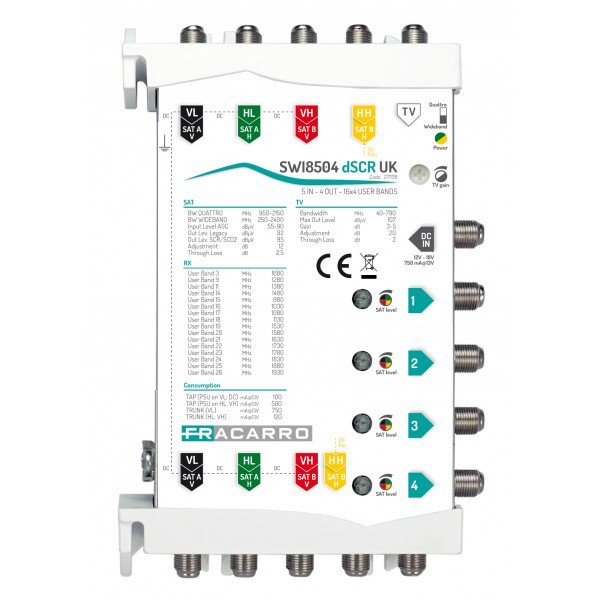

General Specifications for SWI8508 dSCR UK
Tap consumption mA @ 13V
500 (STB power supply option)
200 (DC-IN or VL power supply options)
Consumption on DC-IN port or VL line (in case
this option is used)
mA @ 13V
mA @ 18V
1500 (LNBs or other external consumption
1100 not included)
Dimensions mm 256 x 109 x 50
Operating temperature °C -10 to 55
