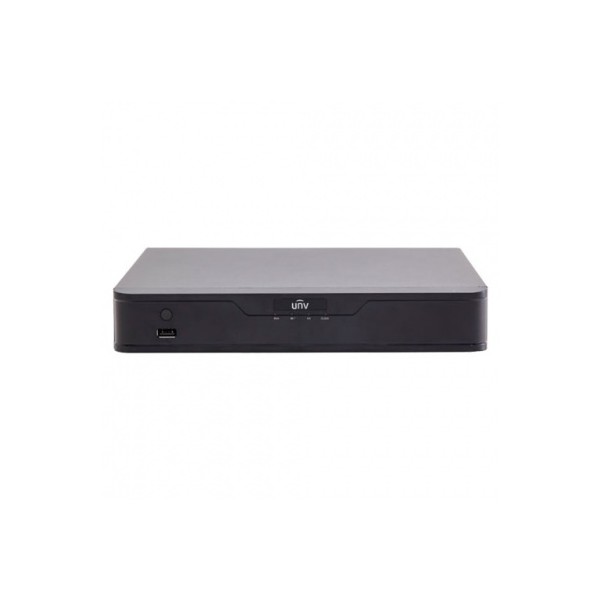

Uniview 8 Channel NVR

Key Features:
Video and Audio Input: It can handle 8-channel IP video input, supporting a broad spectrum of IP cameras with ONVIF conformance across Profiles S, G, C, Q, A, and T. This ensures wide compatibility with third-party IP cameras.

Network Capabilities: The NVR features incoming and outgoing bandwidth of 40Mbps, ensuring smooth transmission of high-quality video feeds. It supports up to 128 remote users, making it suitable for businesses that require access by multiple stakeholders.

Video and Audio Output: It provides HDMI and VGA outputs, capable of delivering high-definition video up to 1920x1080p resolution. HDMI and VGA outputs can function simultaneously, allowing for multiple display setups.

Recording Features: The NVR is capable of recording up to 2MP resolution, supporting various recording resolutions including 1080p, 960p, 720p, D1, 2CIF, and CIF. This provides flexibility in balancing quality and storage requirements.

Decoding and Playback: It offers decoding formats in Ultra 265, H.265, and H.264, with live view and playback capabilities in resolutions up to 1080p. It can simultaneously playback 8 channels, with capabilities such as 2 x 1080p@30 or 4 x 720p@30.

Storage: Equipped with 1 SATA interface, it supports 1 SATA HDD of up to 8TB, providing ample storage for high-definition video recordings.

PoE Interfaces: The NVR includes 8 independent 100 Mbps PoE network interfaces, simplifying the installation process by providing power and data transmission over a single cable to each camera. It supports the IEEE 802.3at and IEEE 802.3af standards, with a maximum of 30W for a single port and a total of 54W.

General Specifications: The device operates within a wide temperature range from -10°C to +55°C and has a compact design measuring 260mm x 240mm x 44mm. It weighs approximately 0.99kg without an HDD installed.

The NVR301-08B-P8 from Uniview is an efficient and reliable choice for users looking to set up or upgrade their surveillance systems. Its support for multiple IP camera standards, combined with advanced video compression techniques and PoE capabilities, makes it a comprehensive solution for ensuring security and surveillance across various settings, including residential, retail, and small to medium-sized enterprises.
