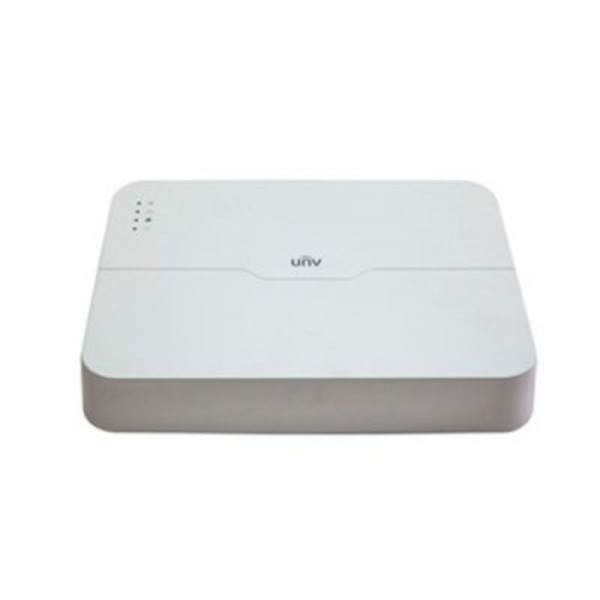

Uniview 8 Channel NVR

The NVR301-08LX-P8 by Uniview is an advanced network video recorder designed for small to medium surveillance applications. It supports a wide range of video formats such as Ultra 265, H.265, and H.264, offering efficient storage utilization and compatibility with a broad spectrum of IP cameras.

Key Features:
Video and Audio Input: Capable of managing 8-channel IP video input along with two-way audio input through an RCA connector. This feature allows for both video recording and audio capture, enhancing the surveillance capabilities.

Network Capabilities: With an incoming bandwidth of 80Mbps and outgoing bandwidth of 64Mbps, it ensures smooth video transmission. It supports up to 128 remote users and various protocols for seamless network integration.

Video and Audio Output: Offers HDMI and VGA outputs capable of delivering up to 4K (3840x2160) resolution. Simultaneous output on both HDMI and VGA ensures flexibility in monitoring.

Recording and Playback: Supports recording at resolutions up to 8MP, ensuring detailed video footage. Synchronous playback for 8 channels allows for efficient review of recorded video.

Storage: Features 1 SATA interface, with support for up to 6TB per HDD. This provides ample space for storing high-resolution video recordings.

Smart Features: Equipped with advanced VCA (Video Content Analysis) features like intrusion detection, cross-line detection, and people counting. These intelligent functions enable precise monitoring and reduce false alarms.

External Interface: Includes one RJ45 10M/100M self-adaptive Ethernet interface for network connectivity and USB ports for data backup and firmware updates.

PoE Ports: Contains 8 RJ45 10M/100M self-adaptive Ethernet interfaces for PoE (Power over Ethernet), simplifying the installation process by allowing both power and data transmission over a single cable. It supports IEEE 802.3at and IEEE 802.3af standards.

General and Environmental Specifications: Designed to operate within a temperature range of -10°C to +55°C and up to 90% non-condensing humidity. Its compact dimensions (270mm x 205mm x 47mm) and light weight (=0.8kg without HDD) make it suitable for various installation environments.

Certifications: Compliant with CE, FCC, UL, RoHS, and WEEE standards, ensuring safety, reliability, and environmental sustainability.
