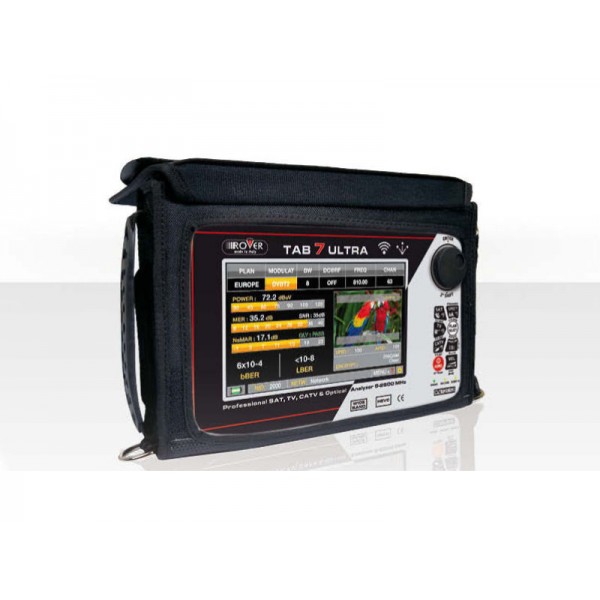

The MOST INNOVATIVE TABLET FIELD METER COMBINED with HEVC
AUTOMATIC, FAST & EASY to USE
Main features:
- 7” TFT TOUCH display: 16:9 high resolution and high brightness
- DC voltage at RF input: 5 - 12 - 18 & 24 VDC
- DiSEqC, SCR & dCSS commands
- PC Interface: USB-B
- Front-Panel: Alpha numeric keypad + Multifunction Encoder
- Power Save: TFT backlight timer, brightness adj
- PC Management: SMART software
- Power Supply: Built in LiPo battery with 2 to 4 hours duration (depending on the function) & Battery Test function
- Battery: Integrated lithium polymers from 2 to 4 hours of duration (depending on the function) and BATTERY TEST function
- Battery door: removable battery door for quick and easy replacement without the need for assistance
Special functions
NEW Intuitive navigation system with direct access to functions.
Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode.
Automatically identifies all the signals with digital modulation SAT, TV and CATV.
Automatic Assistant: Signal Quality analysis, Channel Scan memorization.
Barscan TV & CATV function from 10 to 100 channels on one screen.
Buzzer & Noise Margin real time graph for digital signals microinterruptions.
Reflectometric measurements APP.
Optical Input (opt.).
Wi-Fi Analyzer (opt.).
HEVC H265 decoder (opt.).
SATELITE: DiSEqC, SCR & dCSS commands, SAT FINDER & SAT EXPERT Functions.
Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard.
Loggers: TV, SAT & combined with stop & go function.
SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite.
Free SMART PC interface program and FW upgrades.
SPECIFICATIONS: MEASUREMENTS, SPECTRUM ANALYSIS & PICTURES
Frequency Range: TV Tuner & CATV extended band 4-1250 MHz
SAT TUNER extended band 930-2610 MHz; GSM extended band 860-1000 MHz for telephone repeater installations;
Wide Band: 230-2610 MHz
Frequency Resolution: TV & CATV: 25 KHz; SAT: 5 MHz
Power Range Meas.: TV from 5 to 115 dBμV, SAT from 30 to 105 dBμV
Digital Meas: Digital Power, MER (36 to 40 dB max depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
Measurement Resolution: 0.1 dB
Level Measurement Accuracy: 1 dB typ. (2 dB max.)
Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 1 MHz @ -3 dB
Constellation: for TV/CATV and SAT signals
Spectrum: Fast spectrum, Max Hold and spectrum memorization with real time compare function
Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position
Echoes, Pre-echoes, Micro-echoes: Representation in real Time
Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL
Digital Pictures: MPEG2-4 SD & HD, HEVC (opt.) pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen
Audio: AAC supplied, DOLBY AC3 DD+ (opt.).
Optical measurements
Maximum Ingress Power: 5 dBm;
SC input connector;
Automatic loss calculation;
Wavelengths (nm): 1310, 1490, 1550;
Range: -25 to +6 dBm;
Resolution: 0.1 dB;
Accuracy: +/- 0.5 dB;
Optical to RF conversion: SAT, TV & CATV Measurements and Spectrum.
Comm, Ports and outputs
RF Input : 75 ohm (interchangeable “F”);
SC Optic Ingress (opz.);
USB 2.0: Type B (PC Interface), Type B (for Memory stick);
Composite Video Input;
HDMI: Images output & OSD;
LAN: ETHERNET Gbit;
WIFI: 2,4 & 5,0 GHz Analyzer.
Weight: only 1,8 Kg;
Size: H 27,0 x W 15,5 x D 4,0 cm (meter only);
Aluminium and Steel Housing;
Elite bag with extra padding and storage pocket.
Options
Optic Ingress (HW).
Decoding HEVC H265 images (HW);
Wi-Fi Analyzer (HW);
Dolby Audio AC3 DD+ (SW);
IPTV (SW);
TS Recorder (SW);
FM Radio & TV Analogic (HW);
DAB & DAB+ (HW).
