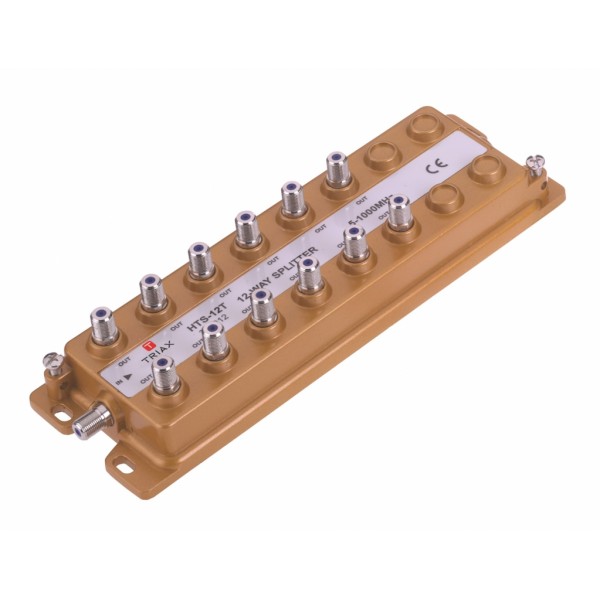

Triax 12 Way DC PassSplitter 5-1000Mhz 347912

Triax HTS 12 - 12 way splitter. Low insertion loss. All ports impedance 75 Ohm. High isolation. Class A shielding - ideal for your TV system.

Add to cart

SHIELDING
EAN Number	5702663479128
Shielding effeciency VHF/UHF	> 110.0 dB
FREQUENCY
Frequency range	5...1000 MHz
LOSS
Insertion loss (in-out) 5-40 Mhz	< 12.3 dB
Insertion loss (in-out) 40-470 MHz	< 12.5 dB
Insertion loss (in-out) 470-860 MHz	< 14.5 dB
Insertion loss (in-out) 860-1000 MHz	< 14.5 dB
ISOLATION
Isolation (tap-tap) 5-40 MHz	> 26.0 dB
Isolation (tap-tap) 40-470 MHz	> 26.0 dB
Isolation (tap-tap) 470-860 MHz	> 23.0 dB
Isolation (tap-tap) 860-1000 MHz	> 23.0 dB
RETURN LOSS
Return loss (in-out) 5-40 MHz	> 17.0 / > 17.0 dB
Return loss (in-out) 40-470 MHz	> 20.0 / > 20.0 dB
Return loss (in-out) 470-860 MHz	> 17.0 / > 17.0 dB
Return loss (in-out) 860-1000 MHz	> 17.0 / > 17.0 dB
ELECTRICAL
Impedance	75 Ω
OPERATIONAL
DC Passthrough	NO
CONNECTORS
Number of outputs	12
Connector Type	F-female
MECHANICAL
Product Depth	44 mm
Product Height	78 mm
Product Width	242 mm
Packaging Height	0,050 m
Packaging Width	0,080 m
Packaging Depth	0,240 m
Packaging Volume	0,001 m3
Net Weight	0,250 kg
Total Weight	0,250 kg
