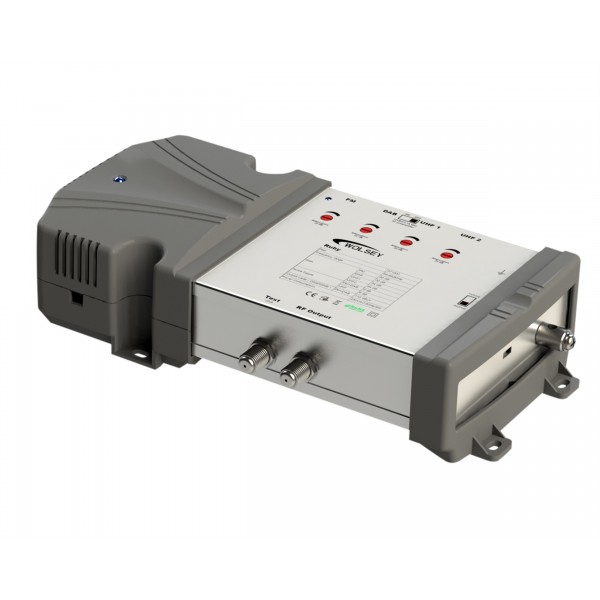

Wolsey RUBY - 4 input - FM/DAB/UHF 371008 Maximize

Wolsey RUBY - 4 input - FM/DAB/UHF 371008

Wolsey RUBY - 4 input - FM/DAB/UHF 371003

  • Multiband Amplifier
  • Variable Gain Control 0-20 dB on All Inputs
  • Switchable Filtering Control
  • Masthead Line Power Supply with Short Circuit Protection
  • Test -30dB
  • Earth Bonding Point

More details

Add to cart
  • Type Amplifier - indoor
    Max. Output level (@ full dig. load) 115dBuV dBµV
    Test point -30dB dB
    FREQUENCY
    Frequency range 88...862 MHz
    Frequency range DAB 217-230 MHz
    Frequency range FM 88...108 MHz
    Frequency range UHF 470-790 MHz
    GAIN
    Gain 30 (FM/DAB) dB
    Gain - UHF 34 (UHF 1 and 2) dB
    Noise figure VHF 6dB dB
    Noise figure UHF 6dB dB
    LOSS
    Attenuation - adjustable 0-20 dB
    ELECTRICAL
    Impedance 75 Ω
    OPERATIONAL
    LINE power DC voltage (max.) 12 Switchable VDC
    LED indicator Yes
    AC Supply voltage 230 / 50Hz VAC
    Power Consumption (typ.) 9 W
    LINE power current (max.) 100 mA
    CONNECTORS
    Number of inputs 4
    Number of outputs 2 (Full and Test)
    Connector Type F-female
    MECHANICAL
    Product Length 232 mm
    Product Width 135 mm
    Product Depth 55 mm
    Packing QTY 1
    Net Weight 0,865 kg
    Tara Weight 0,105 kg
    Total Weight 0,970 kg
    Remarks Screened Amplifier Switchable LTE filter
