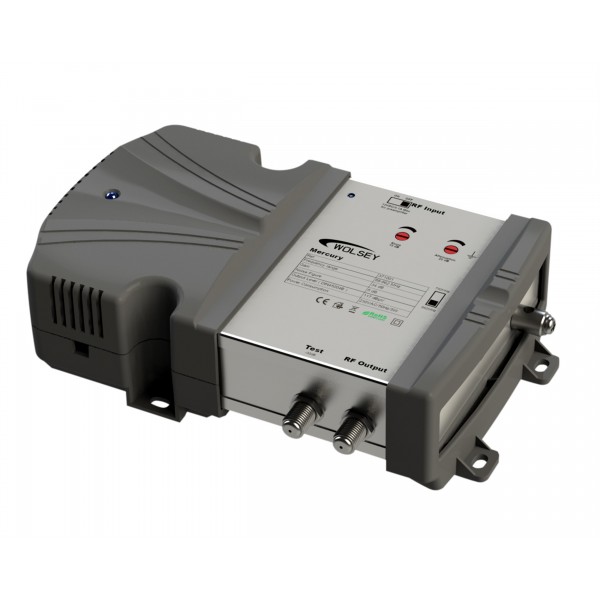

Wolsey MERCURY - 1 input - VHF/UHF 371001 Maximize

Wolsey MERCURY - 1 input - VHF/UHF 371001

Wolsey MERCURY - 1 input - VHF/UHF 371001

  • Multiband Amplifier
  • Variable Gain Control 0-20 dB on All Inputs
  • Switchable Filtering Control
  • Masthead Line Power Supply with Short Circuit Protection
  • Test -30dB
  • Earth Bonding Point

More details

Add to cart
  • Type Amplifier - indoor
    Max. Output level (@ full dig. load) 117dBuV dBµV
    Test point -30dB dB
    FREQUENCY
    Frequency range 88...862 MHz
    GAIN
    Gain 34 dB
    Noise figure 5 dB
    LOSS
    Attenuation - adjustable 0-20 dB
    ELECTRICAL
    Impedance 75 Ω
    OPERATIONAL
    LINE power DC voltage (max.) 12 Switchable VDC
    LED indicator Yes
    AC Supply voltage 230 / 50Hz VAC
    Power Consumption (typ.) 5 W
    LINE power current (max.) 100 mA
    CONNECTORS
    Number of inputs 1
    Number of outputs 2 (Full and Test)
    Connector Type F-female
    MECHANICAL
    Product Length 190 mm
    Product Width 135 mm
    Product Depth 55 mm
    Packing QTY 1
    Net Weight 0,775 kg
    Tara Weight 0,095 kg
    Total Weight 0,870 kg
    Remarks Screened Amplifier Switchable LTE filter
