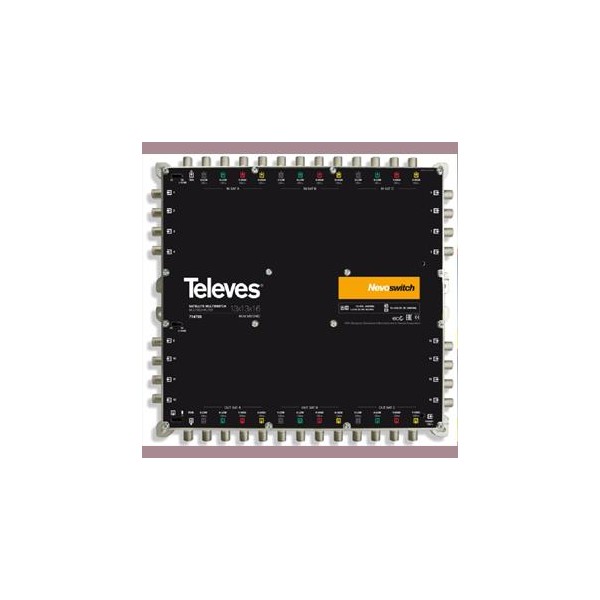

SCALABLE 13X AND 17X MULTISWITCHES RANGE
EUROPEAN QUALITY AND DESIGN

THE BEST CHOICE FOR IRS SYSTEMS

13x and 17x multiswitches range with multiple outputs (8, 12, 16, 24 and 32) with available through outputs to connect several multiswitches in cascade con guration and therefore extend the number of users.

Switch to choose between star and cascade con guration.

Both ranges feature a 13 wires ampli er (12 satellite plus terrestrial) and 17 wires amplifer with 25dB preaccentuated gain on satellite and 25dB gain on terrestrial with through powering.

Highlights:

• Radiation inmune thanks to its zamak made chassis.
• All switch references are valid for standalone, star or cascade configuration.
• Selectable IF gain (+10 dB) for each group or 8 users to balance the output signals.
• Multiple powering options: mains and line powered.
• ECO mode: the overall consumption is reduced as the number of users decreases.

Main features:

• Small sized design: Make the most of space to accomodate more TV subscribers.
• Use the same multiswitch in either star/cascade or standalone con guration.
• Independent ampli cation of every feed (8 satellite plus Freeview).
• Multiple powering options: mains and line powered.
• Adjustable gain and equalization to achieve the best performance for every system's requirements.
