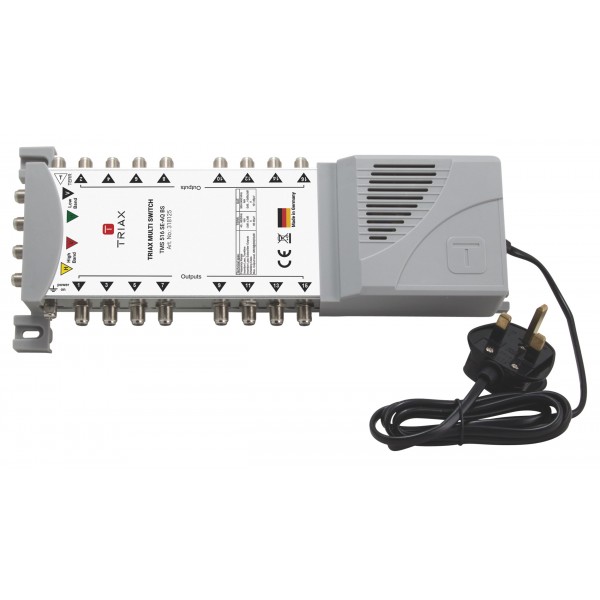

Triax TMS516 5x16 Multiswitch Quad / Quattro LNB 318623

Standalone 5 input, 16 subscriber outputs, Quad + Quattro LNB Support

Add to cart

CHARACTERISTICS
EAN Number	5702663181250
Max. output level SAT @ -35 dB IMD3	100 dBµV
Max. output level TER @ -60dB IMD3	88 dBµV
LNB current max.	500 mA
Switch commands	13/18 V, 0/22 kHz, DiSEqC 1.0
FREQUENCY
Frequency range TER	40...862 MHz
Frequency range SAT	950...2400 MHz
LOSS
Insertion loss - SAT	-2...+2dB +/-2 dB
Insertion loss - TER	-2dB +/-2 dB
ISOLATION
Isolation SAT to TER	typ. 30 dB
Isolation cross polarisation H/V	typ. 30 dB
RETURN LOSS
Return loss SAT inputs	>10 dB
Return loss SAT outputs	>10 dB
Return loss TER inputs	>10 dB
Return loss TER outputs	>10 dB
Return loss TAP outputs	>10 dB
ELECTRICAL
Impedance	75 Ω
OPERATIONAL
Screening Efficiency	Class A
AC Supply voltage	90…264 / 50...60Hz VAC
Power Consumption (typ.)	5.5 W
Max. current to each output (supplied by set top box)	38 mA
Control LEDs	Green LED (Power)
Temperature - operating	0 - 55 °C
CONNECTORS
Connector Type	F-female
Number of inputs	5
Number of trunk inputs	3 SAT, 1 TER
Number of outputs	13
Number of trunk outputs	3 SAT, 1 TER
Subscriber outputs	16
Power connector	UK Plug
Colour coding of IF and TER inputs	VL=Black, VH=Red, HL=Green, HH=Yellow
MECHANICAL
Main material	Steel housing
Product Height	57 mm
Product Depth	110 mm
Product Width	310 mm
Colour	RAL 7035 - Light grey
Packing QTY	1
Packaging Height	0,310 m
Packaging Width	0,110 m
Packaging Depth	0,057 m
Packaging Volume	0,002 m3
Net Weight	0,300 kg
Total Weight	0,300 kg
