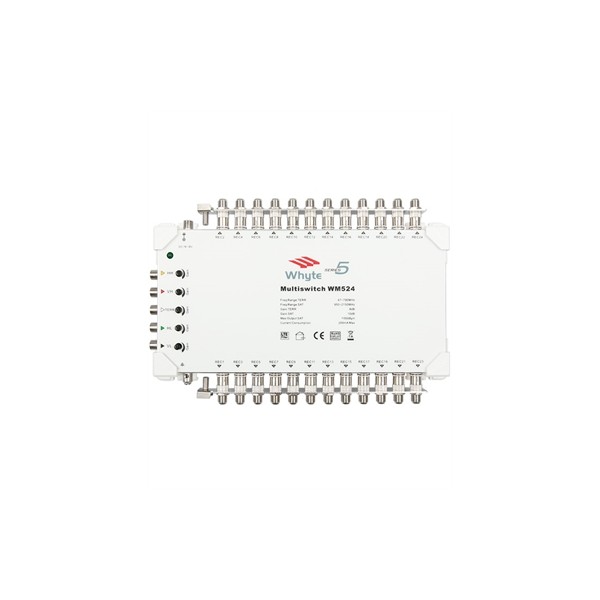

Whyte 5x24 multiswitch WM524 Maximize

Whyte 5x24 multiswitch WM524

Whyte Series 5 WM524 5 wire 24 way multiswitch

More details

WM524

Add to cart
  • All Whyte products have inbuilt LTE filters to reject 4G interference.

    • 24 way line powered multiswitch
    • Excellent reliability and build quality
    • 5dB Gain Control on all IF and Terrestrial in-puts
    • Can be used as a stand alone multiswitch ( PSU required model WPSU-1A sold separately)
    • Can be used to create large IRS Systems when used in conjunction with Launch Amplifiers, Taps and Splitters from the Whyte Series 5 range
    • Pre-fitted with robust removable Earth Terminal Bars
    • Colour coded SAT/TERR inputs
    • Auxiliary 18V input provides power to other multiswitches and amplifiers via the IF inputs
    • Uses receiver power via the subscriber ports to supply the multiswitch thus reducing PSU power demands
    • Green LED power indicator
    • Built in LTE filter to reject 4G interference

    SPECIFICATIONS: -

    Weight: 1190g
    Dimensions: 157 x 266 x 43 mm
    FREQUENCY: Satellite: 950-2150MHz, Terrestrial 47-790MHz
    INPUTS (F-Type Connector): 4 x Satellite, 1 x Terrestrial
    OUTPUTS (F-Type Connector): 24 Tap outputs
    GAIN: SAT: =10dB, TERR: =8dB
    GAIN CONTROL: Satellite: 11±2dB, Terrestrial: 11±2dB
    ISOLATION: Cross Polar: =25dB, Rejection: =20dB, Tap-Tap Sat: =25dB, Tap-Tap Terr: =23dB, Trunk - Trunk: =28dB
    OUTPUT LEVEL: SAT (IMA3 35db): 100dBµv, TERR (IMA3 60db): 85dBµv
    SWITCHING VOLTAGE: 15±0.8V
    TRUNK MAX CURRENT: 2A
    SWITCHING COMMANDS: 13V-18V, 13V22k-18V22K
    CURRENT CONSUMPTION: 200mA max
