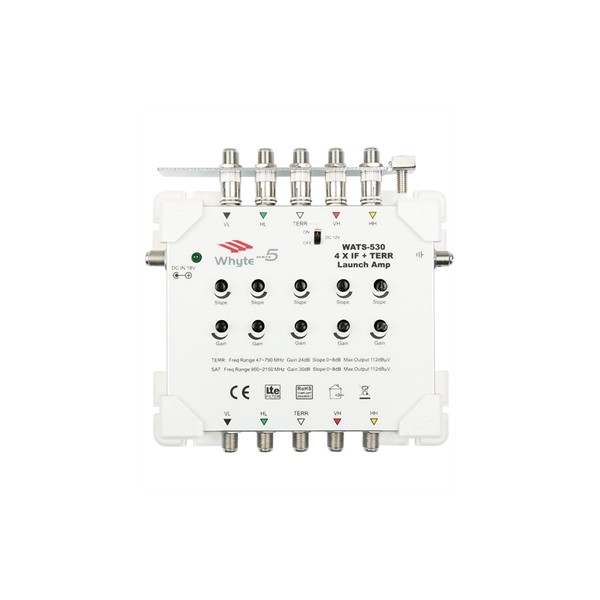

Whyte 30db Launch Amp WATS-530

• Comes with input Earth Bar
• Gain Control to all inputs
• Slope Control to all inputs
• Switchable 12V DC Supply to Terrestrial input
• LTE Filter rejects 4G interference
• 18V Auxiliary Input injects power to the HL and HH trunk
• Colour coded inputs and outputs

Frequency: Satellite 950-2150MHz / Frequency: Terrestrial 47-790MHz
Inputs (F-Type Connector): 4 SAT + 1 TERR
Outputs (F-Type Connector): 4 SAT + 1 TERR
Gain: SAT (2150MHz) 30±2dB / TERR 24±2dB
Gain Control: SAT 15±2dB / TERR 10±2dB
Slope Control: TERR 8±2dB / SAT 8±2dB
Maximum Output Level: SAT (IMA³ 35dB) EN50083-3 112dBµV / TERR (IMA³ 60dB) EN50083-5 112dBµV
Trunk Max Current Pass (per line): 2A
TERR 12V DC Supply (switchable): 100mA
Current Consumption: 290mA max
Dimension: 164 x 136 x 41
Weight: 365g
