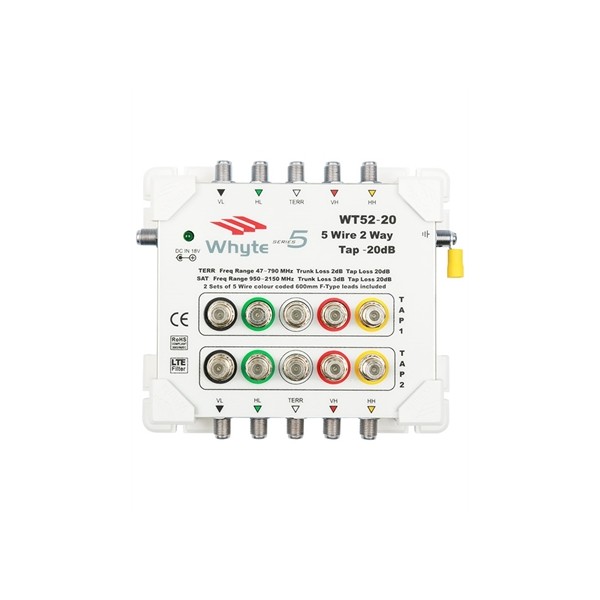

Whyte 2 way 20db tap WT52-20

• Tap outputs on top of unit for easy access
• Auxiliary 18V Input injects power to HL and HH trunk cables
• LED power indicator
• Colour coded inputs and outputs
• Inbuilt LTE filter
• Taps and Splitters can be connected together to create a multitude of 3,4,5 or 6 way splitters with varying attenuation levels

The Whyte Series 5 Taps and Splitter are DC passing through all IF Trunk Lines. The HL and HH Tap Lines are DC passing whilst the VL, VH and Terrestrial Tap Lines are isolated.

An Auxiliary 18V Input is provided on all Taps and Splitters which enables a Whyte PSU unit to be conveniently connected anywhere on the system.

A combination of Taps and Splitters can be coupled together to create a multitude of 5 wire splitters with any number of outputs. All inputs and outputs are colour coded and a green LED power indicator is provided for ease of installation and servicing.

All Whyte products have inbuilt LTE filters to reject 4G interference.

Frequency: Satellite 950-2150MHz / Terrestrial 47-790MHz
Inputs (F-Type Connector): 4 SAT + 1 TERR
Outputs (F-Type Connector): 3 x 4 SAT + 3 x 1 TERR
DC Pass Trunk: SAT Yes / TERR No
DC Pass Trunk to Tap: SAT HH and HL / TERR No
Insertion Loss Trunk: SAT 3±2dB / TERR 2±2dB
Insertion Loss Taps: SAT 20±2dB / TERR 20±2dB
Fixed Slope Taps (SAT): 4dB
Tap Max Current Pass (per line): 2A
Dimensions: 164 x 136 x 50 mm
Weight 385g
