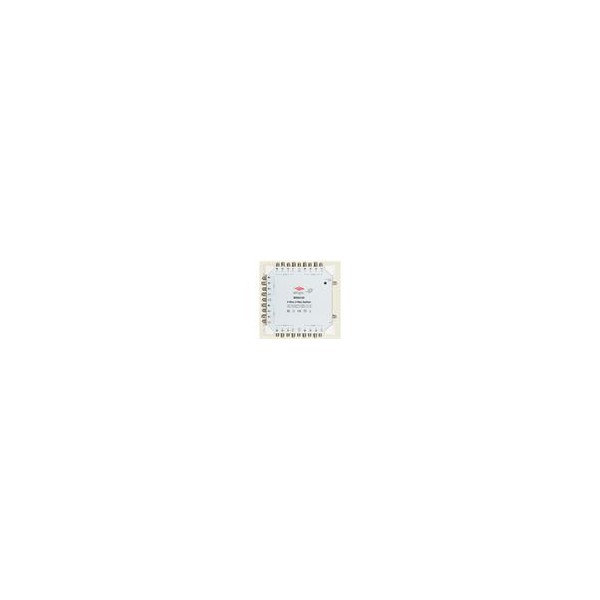

Whyte 9 wire 2 way splitter WS92-05

The Whyte Series 9 Splitter is a passive device designed to be used with the Whyte Series 9 IRS Multiswitch Range. The WS92-05 Splitter comes with 9 F-type Couplers for quick and easy insertion in to a cascade of Series 9 Multiswitches.

8 SAT + 1 TERR Inputs
2 x 8 SAT + 1 TERR Outputs
LTE Filter rejects 4G interference
18V Auxiliary Input injects power to the HLand HH trunk lines
Green LED indicates DC power present
Compact size
Colour coded inputs and outputs

Frequency Satellite 950-2150MHz
Terrestrial 47-790MHz
Inputs (F-Type Connector) 8 SAT + 1 TERR
Outputs (F-Type Connector) 8 SAT + 1 TERR
DC Pass Input to Tap SAT YES / TERR NO
DC Pass Tap to Tap SAT YES / TERR NO
Insertion Loss Taps SAT 4±2dB / TERR 3±2dB
Return Loss SAT =10dB / TERR =10dB
Isolation >28dB
Fixed Slope Taps (SAT) 4dB
Tap Max Current Pass (per line) 2A
Dimensions (mm) 178 x 178 x 50
Weight 520g
