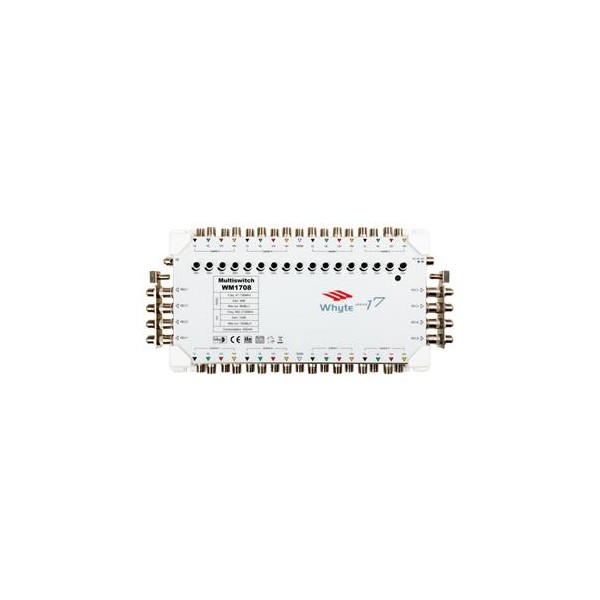

WHYTE S17 Multiswitch 17x8 WM1708

Series 17 Multiswitches can be used as Standalone Multiswitches when powered directly via the18V Auxiliary input by using a Whyte 2.5A Power Supply Unit (model WPSU-2.5A).

• Line Powered Multiswitch
• Use as standalone when powered with a Whyte PSU
• SAT gain 10dB / TERR gain 8dB
• Gain Control on all inputs
• Comes with 17 F-Type couplers for easy connection to Series 17 Multiswitches and Amplifiers
• Uses the receiver power to reduce demands on system PSU
• Colour coded inputs and outputs
• LED Power Indicator
• Inbuilt LTE filter
• Adequate clearance to route cables under the multiswitch
• Use Whyte Series 17 Launch Amplifiers Splitters to build large capacity IRS Systems

Frequency: Satellite 950-2150MHz / Terrestrial 47-790MHz
Inputs (F-Type Connector): 16 SAT+1 TERR
Outputs (F-Type Connector): 8 Tap Outputs
Through Loss: SAT 4±1dB / TERR 4±1dB
Gain: Tap SAT 10±2dB / Tap TERR 8±2dB
Gain Control: SAT 11±2dB / TERR 11±2dB
Isolation: Trunk - Trunk =28dB / Cross Polar =23dB / Tap-Tap SAT =25dB / Tap-Tap TERR =20dB / Rejection =20dB
Max Output: SAT ( IMA³35dB) 100dBµV / TERR (IMA³60dB) 90dBµV
Switching Voltage: 15±0.8V
Trunk Max Current Pass (per line): 2A
Switching Commands: DiSEqC 1.0/2.0 / 13V-18V / 13V22K-18V22K
Current Consumption: 450mA Max
Dimension: 313x147x45
Weight: 1080g
