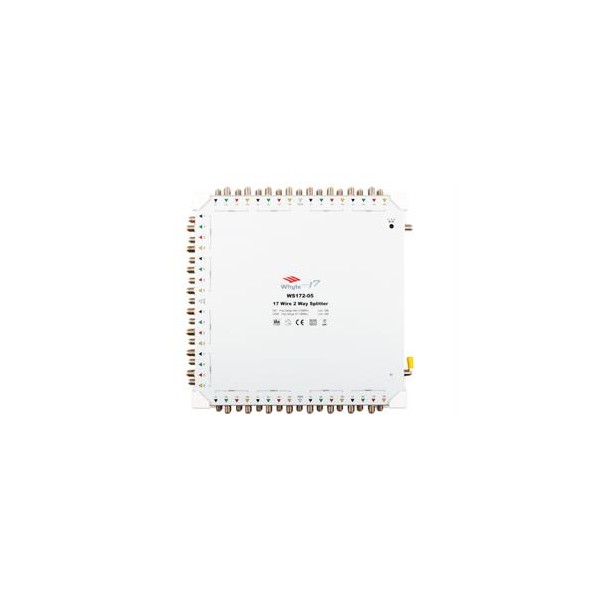

The Whyte Series 17 Splitter is a passive device designed to be used with the Whyte Series 17 Multiswitch Range

• 16 SAT + 1 TERR Inputs
• 2 x 16 SAT + 1 TERR Outputs
• Comes with 17 F-Type couplers for easy connection to Series 17 Multiswitches and Amplifiers
• LTE Filter rejects 4G interference
• 18V Auxiliary Input injects power to the HL and HH trunk lines
• Green LED indicates DC power present
• Compact size
• Colour coded inputs and outputs

Frequency: Satellite 950-2150MHz / Terrestrial 47-790MHz
Inputs (F-Type Connector): 16 SAT + 1 TERR
Outputs (F-Type Connector): 16 SAT + 1 TERR
DC Pass Input to Tap: SAT YES / TERR NO
DC Pass Tap to Tap: SAT YES / TERR NO
Insertion Loss Taps: SAT 4±2dB / TERR 3±2dB
Return Loss: SAT =10dB / TERR =10dB
Isolation: =28dB
Fixed Slope Taps (SAT): 4dB
Tap Max Current Pass (per line): 2A
Dimensions: 278 x 278 x 44 mm
Weight 1260g
