Whyte Series D WSCR512

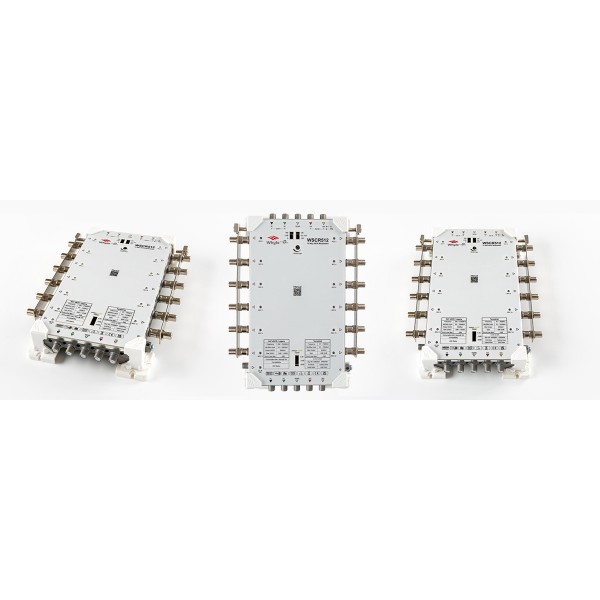

Whyte Series D WSCR512 5 Wire 12 Way DSCR Multiswitch

More details

Add to cart

  • Advanced Cascadable 12 way dSCR Multiswitches enable seamless integration with conventional IRS Systems due to extremely low power consumption, low loss passive trunks and high gain Terrestrial, make the new Series D range from Whyte the most versatile and easy to install dSCR Multiswitch range available. Each subscriber output provides SkyQ, Legacy, TV and Radio. Satellite subscriber signal levels in both Legacy and dSCR mode are automatically set to 85dBμV. Terrestrial signal levels are controlled via a manual Gain Control knob and a selectable Protean Tap which permits a wide range of TERR input signal levels from 50 to 108dBμV. The reception of 2 satellites can easily be achieved by utilising 2 Wideband LNB’s and switching the unit to Wideband LNB mode. The unit can be powered directly via the DC input port or be remotely powered via the trunk lines.

    • Inbuilt LTE filter
    • Comes with Earth Bars fitted
    • Uncomplicated DC powering option
    • Switchable 12V DC supply to TERR input
    • Compatible with Quattro and Wideband LNB’s
    • Easy integration with conventional IRS systems
    • High Gain TERR with Gain Control and Protean Tap
    • Extremely low power consumption eg. WSCR504 (Min/ Max) 0.1A/0.28A
    • Balanced dSCR and Legacy output signal levels (AGC) for easy system planning
    • Quattro LNB for single satellite 5 Wire system or 2 Wideband LNB’s for 2 Sat reception


    Specifications

    Frequency Range SAT Wideband 290-2340MHz
      SAT Quattro 950-2150MHz
      TERR 87-790MHz
    Dual Satellite Reception SAT Wideband (2x WB LNB) YES
    Trunk Inputs (F-Type Female)   4 SAT + 1 TERR
    Trunk Outputs (F-Type Female)   4 SAT + 1 TERR
    Tap Outputs (F-Type Female)   12
    Gain SAT -5dB ~ +25dB (AGC)
      TERR 8dB ±2dB
    Gain Control SAT AGC
      TERR 15dB
    Input Levels Min / Max SAT 64 ~ 104dBμV
      TERR 52 ~ 102dBμV
    Trunk Through Loss SAT <-5dB
      TERR <-5dB
    Return Loss SAT Trunk Input / Output >10dB / >10dB
      TERR Trunk Input / Output >8dB / >8dB
      Tap Output >8dB
    Max Output Level SAT 89dBμV (AGC)
      TERR 90dBμV
    Protean Tap™ (A ttenuation Switch) TERR 0 / -10 / -20dB
    Isolation Trunk Port to Port >36dB
      Tap Port to Port >43dB
    Trunk DC Pass SAT (per trunk) YES (2A Max)
      TERR NO
    Impedance   75Ω
    Compatibility (Auto Switching)   Legacy
        SKY UK dSCR
        EN50607
        EN50494
    Switching Commands Legacy 13/18V / 22kHz / DiSEqC
      dSCR DiSEqC
    dSCR/Legacy Mode Indication (per port)   LED (dSCR Flash)
    Power Supply Voltage   18V DC
    Powering Via DC In YES
      Via SAT Trunks YES
      Via Apartment NO
    Power Consumption Min / Max @ 18V   0.1A / 0.15A
    Power Indication   LED
    Masthead Supply (switchable) TERR Input Only 12V DC 100mA
    Earth Terminal Bars (Tap Outputs)   Fitted
    Earth Lug   Up to 6mm² core
    Dimensions including Earth Bars W x L x H (mm)   190 x 255 x 43
    Weight   880g
