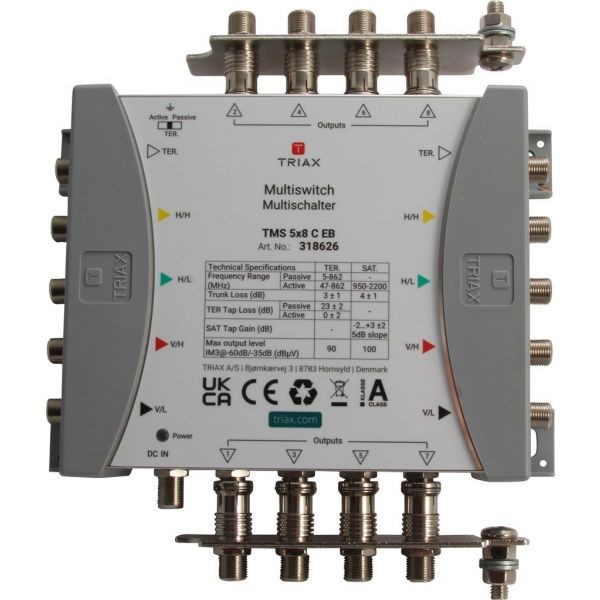

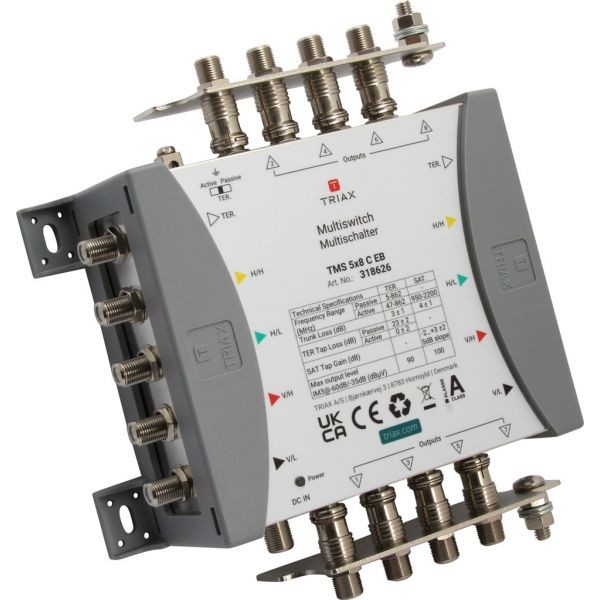

Triax TMS 5x8 C EB 318626

Cascade multiswitch for 1 Satellite position with 5 inputs and 5 trunk outputs, suitable for distributing satellite and terrestrial signals in small to large sized systems. Available with 8 subscriber outputs and powered by the TMS PSU external power supply either directly or via the SAT trunk lines.

  • Low insertion loss
  • High isolation
  • Low power consumption
  • RED compliant
  • ESD Protection

More details

Add to cart

  • Flexibility

    All the functionality you need in a simplified, streamlined range:

    • Easier to select the right product
    • Fewer products to stock
    • Active/Passive Terrestrial Switch

    Convenience

    Designed with installer convenience in mind:

    • Equidistant F-connectors on all multiswitches
    • Colour-coded input labels
    • LED power indicator
    • Flexible power injection
    • Earth bars



    ELECTRICAL

    Impedance 75 Ω

    CONNECTORS

    Connector Type F-female
    Connector DC F-female
    Number of trunk inputs 4 SAT, 1 TER
    Number of trunk outputs 4 SAT, 1 TER
    Subscriber outputs 8
    Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

    CHARACTERISTICS

    LNB type Quattro
    Max. input level - SAT (IMD3 - 35dB) 97 dBµV
    Max. input level - TER (IMD3 - 60dB) 90 dBµV
    Max. output level SAT @ -35 dB IMD3 100 dBµV
    Max. output level TER @ -60dB IMD3 90 dBµV
    LNB current max. 3000 mA
    Switch commands DiSEqC 1.0/2.0, 13/18V, 0/22kHz

    FREQUENCY RANGE

    Frequency range TER Active: 47...862 / Passive: 5...862 MHz
    Frequency range SAT 950…2200 MHz

    GAIN

    Gain - SAT (with 5 dB slope) -2…+3 ± 2 dB
    Gain - TER 0 ± 2 dB

    LOSS

    Tap loss TER 23 ± 2 dB
    Insertion loss - trunkline SAT 4 ± 1 dB
    Insertion loss - trunkline TER 3 ± 1 dB

    ISOLATION

    Isolation SAT to TER > 30 dB
    Isolation trunk to trunk > 30 dB
    Isolation cross polarisation H/V 30 dB
    Isolation out-out SAT 30 dB
    Isolation out-out TER 25 dB

    RETURN LOSS

    Return loss SAT inputs >10 dB
    Return loss SAT outputs >10 dB
    Return loss TER inputs >10 dB
    Return loss TER outputs >10 dB
    Return loss TAP outputs 10 dB

    OPERATIONAL

    LINE power DC voltage (max.) 15…20 VDC
    LINE power current (max.) 2000 mA
    PSU output DC voltage 18 VDC
    ESD protection 4KV inputs & sub outputs
    DC Current consumption 30mA TER passive 200mA TER active mA
    PSU/adapter Art number 318165, 318166, 318167
    Max. current to each output (supplied by set top box) <50 mA
    Control LEDs Green LED (Power)
    Temperature - operating -20…+55 °C

    MECHANICAL

    Main material Steel housing
    Packing QTY 1
    Product Height 200 mm
    Product Width 140 mm
    Product Depth 65 mm
    Packaging Height 0.070 m
    Packaging Width 0.230 m
    Packaging Depth 0.182 m
    Packaging Volume 0.000 m3
    Net Weight 0.740 kg
    Tara Weight 0.135 kg
    Total Weight 0.875 kg
    Remarks Earth bars
