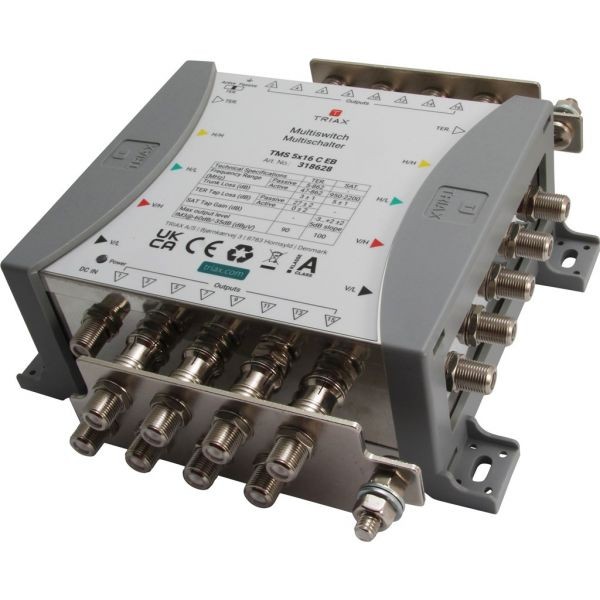

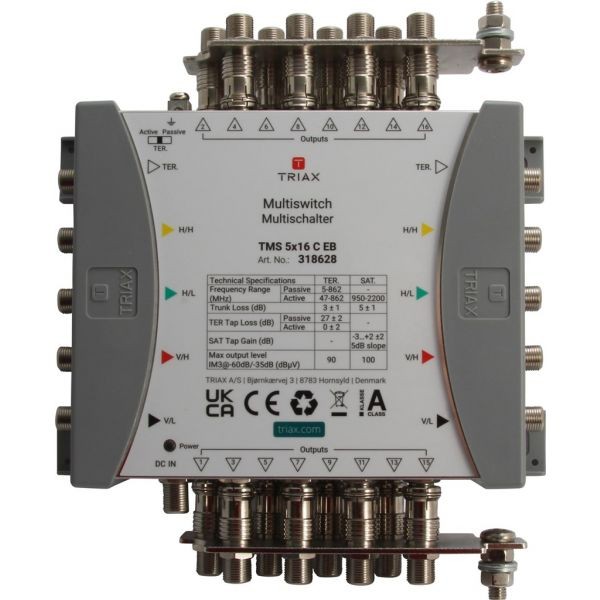

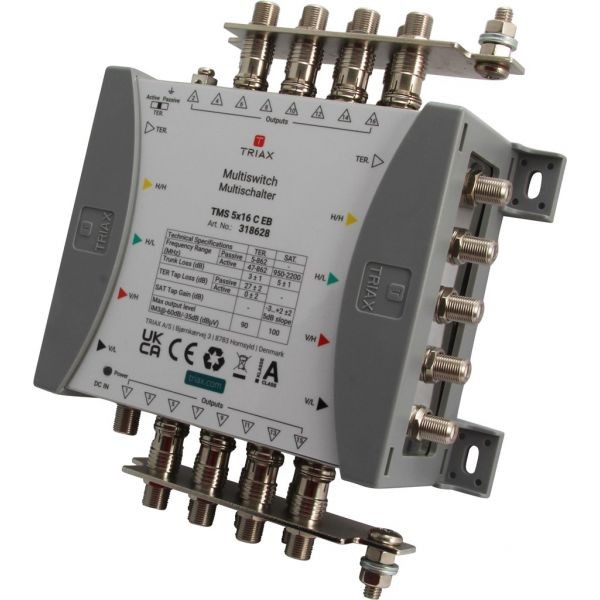

Triax TMS 5x16 C EB 318628

Cascade multiswitch for 1 Satellite position with 5 inputs and 5 trunk outputs, suitable for distributing satellite and terrestrial signals in small to large sized systems. Available with 16 subscriber outputs and powered by the TMS PSU external power supply either directly or via the SAT trunk lines.

More details

Add to cart

  • Excellent performance

    • Low insertion loss
    • High isolation
    • Low power consumption
    • RED compliant
    • ESD Protection

    Flexibility

    All the functionality you need in a simplified, streamlined range:

    • Easier to select the right product
    • Fewer products to stock
    • Active/Passive Terrestrial Switch

    Convenience

    Designed with installer convenience in mind:

    • Equidistant F-connectors on all multiswitches
    • Colour-coded input labels
    • LED power indicator
    • Flexible power injection
    • Earth bars



    ELECTRICAL

    Impedance 75 Ω

    CONNECTORS

    Connector Type F-female
    Connector DC F-female
    Number of trunk inputs 4 SAT, 1 TER
    Number of trunk outputs 4 SAT, 1 TER
    Subscriber outputs 16
    Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

    CHARACTERISTICS

    LNB type Quattro
    Max. input level - SAT (IMD3 - 35dB) 98 dBµV
    Max. input level - TER (IMD3 - 60dB) 90 dBµV
    Max. output level SAT @ -35 dB IMD3 100 dBµV
    Max. output level TER @ -60dB IMD3 90 dBµV
    LNB current max. 3000 mA
    Switch commands DiSEqC 1.0/2.0, 13/18V, 0/22kHz

    FREQUENCY RANGE

    Frequency range TER Active: 47...862 / Passive: 5...862 MHz
    Frequency range SAT 950…2200 MHz

    GAIN

    Gain - SAT (with 5 dB slope) -3…+2 ± 2 dB
    Gain - TER 0 ± 2 dB

    LOSS

    Tap loss TER 27 ± 2 dB
    Insertion loss - trunkline SAT 4 ± 1 dB
    Insertion loss - trunkline TER 4 ± 1 dB

    ISOLATION

    Isolation SAT to TER > 30 dB
    Isolation trunk to trunk > 30 dB
    Isolation cross polarisation H/V 30 dB
    Isolation out-out SAT 30 dB
    Isolation out-out TER 25 dB

    RETURN LOSS

    Return loss SAT inputs >10 dB
    Return loss SAT outputs >10 dB
    Return loss TER inputs >10 dB
    Return loss TER outputs >10 dB
    Return loss TAP outputs 10 dB

    OPERATIONAL

    LINE power DC voltage (max.) 15…20 VDC
    LINE power current (max.) 2000 mA
    PSU output DC voltage 18 VDC
    ESD protection 4KV inputs & sub outputs
    DC Current consumption 30mA TER passive 200mA TER active mA
    PSU/adapter Art number 318165, 318166, 318167
    Max. current to each output (supplied by set top box) <50 mA
    Control LEDs Green LED (Power)
    Temperature - operating -20…+55 °C

    MECHANICAL

    Main material Steel housing
    Packing QTY 1
    Product Height 200 mm
    Product Width 140 mm
    Product Depth 65 mm
    Packaging Height 0.070 m
    Packaging Width 0.230 m
    Packaging Depth 0.182 m
    Packaging Volume 0.000 m3
    Net Weight 0.895 kg
    Tara Weight 0.140 kg
    Total Weight 1.035 kg
    Remarks Earth bars
