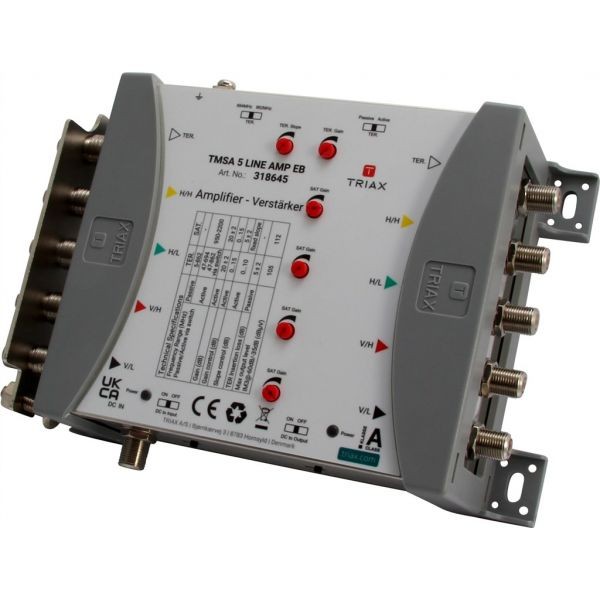

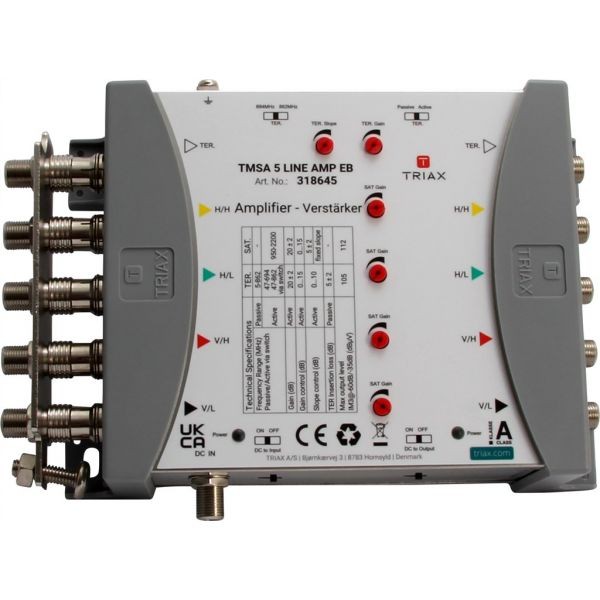

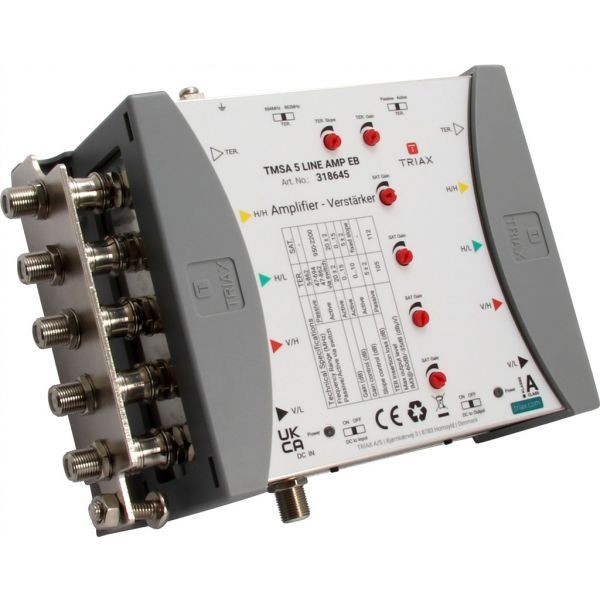

Triax TMSA 5 LINE AMP EB 318645

The TMSA 5 Line Amp EB, with 5 inputs and 20dB gain, compensates for the cable loss in your designed multiswitch systems.

Equipped with earth bars and powered directly via the DC input port, or line powered via all Sat lines.

Add to cart

ELECTRICAL

Impedance

75 Ω

Connector Type	F-female
Connector DC	F-female
Number of trunk inputs	5
Number of trunk outputs	5
Colorcoding @IF/TER inputs	VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

Input polarity gain control TER	0…15 dB
Input polarity gain control SAT	0…15 dB
Max. output level SAT @ -35 dB IMD3	112 dBµV
Max. output level TER @ -60dB IMD3	105 dBµV
LNB current max.	3000 mA

Frequency range TER	Active: 47…694 - 47...862 / Passive: 5...862 MHz
Frequency range SAT	950…2200 MHz

Gain - SAT (with 5 dB slope)	20 ± 2 dB
Gain - TER	20 ± 2 dB

Insertion loss - TER

5 dB

Isolation SAT to TER	> 30 dB
Isolation cross polarisation H/V	> 30 dB

Return loss SAT

> 10 dB
