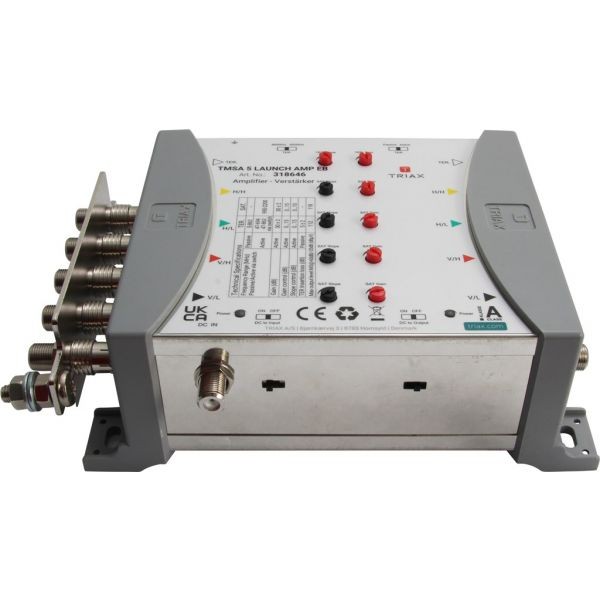

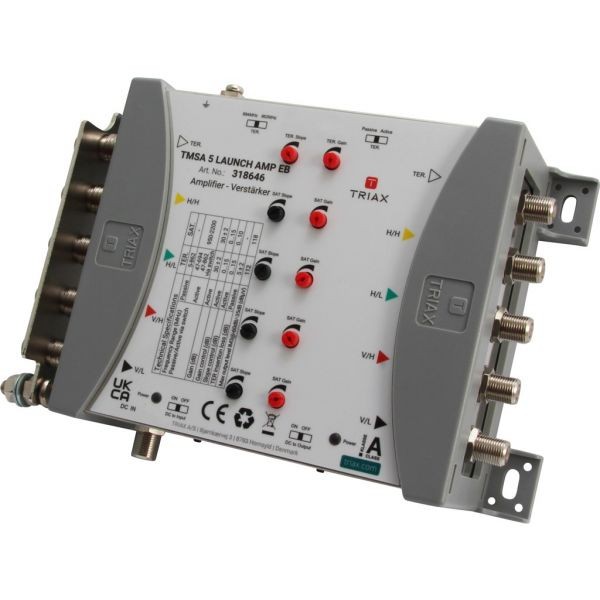

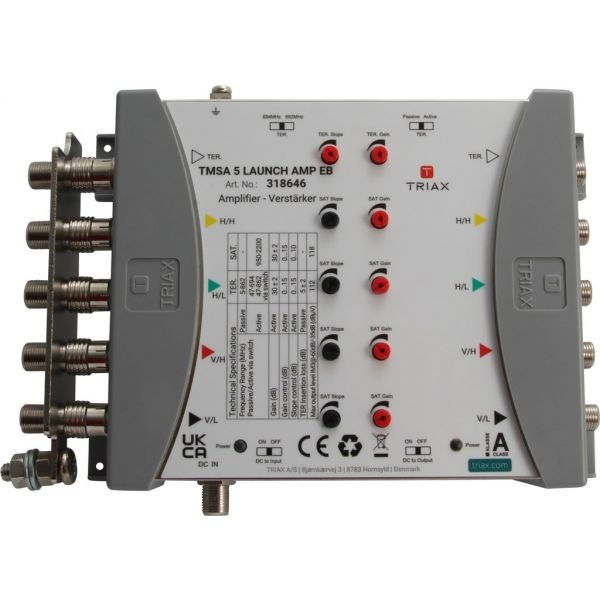

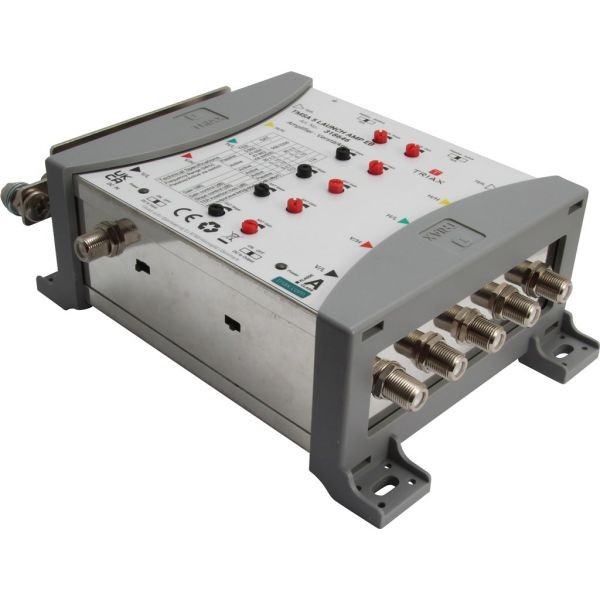

Triax TMSA 5 LAUNCH AMP EB 318646

The TMSA 5 Launch Amp EB, with 5 inputs and 30dB gain, compensates for the cable loss in your designed multiswitch systems.

Equipped with earth bars and powered directly via the DC input port, or line powered via all Sat lines.

More details

Add to cart

  • ELECTRICAL

    Impedance 75 Ω

    CONNECTORS

    Connector Type F-female
    Connector DC F-female
    Number of trunk inputs 5
    Number of trunk outputs 5
    Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

    CHARACTERISTICS

    Input polarity gain control TER 0…15 dB
    Input polarity gain control SAT 0…15 dB
    Max. output level SAT @ -35 dB IMD3 118 dBµV
    Max. output level TER @ -60dB IMD3 112 dBµV
    LNB current max. 3000 mA

    FREQUENCY RANGE

    Frequency range TER Active: 47…694 - 47...862 / Passive: 5...862 MHz
    Frequency range SAT 950…2200 MHz

    GAIN

    Gain - SAT 30 ± 2 dB
    Gain - TER 30 ± 2 dB

    LOSS

    Insertion loss - TER 5 dB

    ISOLATION

    Isolation SAT to TER > 30 dB
    Isolation cross polarisation H/V > 30 dB

    RETURN LOSS

    Return loss SAT > 10 dB

    OPERATIONAL

    LINE power DC voltage (max.) 15…20 VDC
    LINE power current (max.) 2000 mA
    PSU output DC voltage 18 VDC
    ESD protection 4KV inputs & sub outputs
    DC Current consumption 500mA max. @18V DC mA
    PSU/adapter Art number 318165, 318166, 318167
    Control LEDs Green LED (Power)
    Temperature - operating -20…+50 °C

    MECHANICAL

    Dimensions product (H x D x W) 140 x 65 x 175 mm
    Packing QTY 1
    Product Length 140 mm
    Product Width 175 mm
    Product Depth 65 mm
    Packaging Height 0.000 m
    Packaging Width 0.000 m
    Packaging Depth 0.000 m
    Packaging Volume 0.000 m3
    Net Weight 0.700 kg
    Tara Weight 0.140 kg
    Total Weight 0.840 kg
    Remarks Earth Bars
