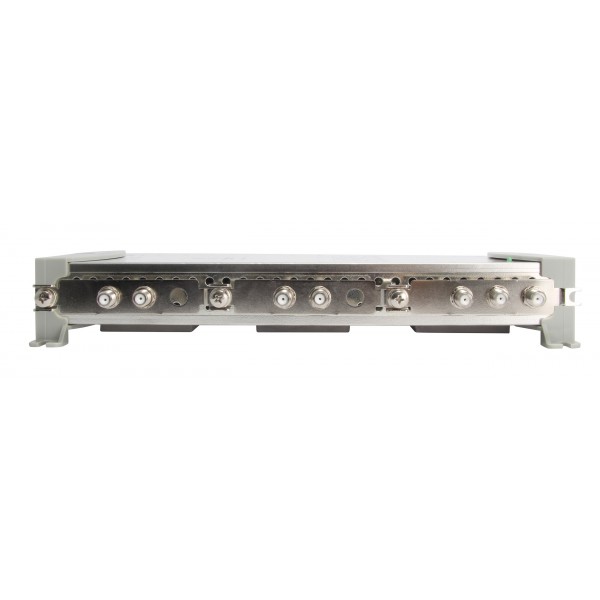

Triax TDSCR 512 12 Output dSCR Sky Q Multiswitch 318187

Triax TDSCR 512 12 Output dSCR Sky Q Multiswitch 318187

More details

Add to cart

  • Specifications

    ORDER INFORMATION
    EAN Number 5702663181878
    CHARACTERISTICS
    Input level 70...100 (-38 to -8dBm) dBµV
    Output level 85 (AGC) (-25dBm) dBµV
    LNB power supply max. 15...20 V/DC
    LNB current max. 1000 mA
    FREQUENCY
    Frequency range TER 40...790, active MHz
    Frequency range SAT dSCR/legacy: 950...2150 - Wideband: 290...2340 MHz
    LOSS
    Through loss TER typ. 6 dB
    Through loss SAT typ. 4 dB
    Insertion loss - TER typ.0 dB
    Attenuation TER 0...20 dB
    ISOLATION
    Isolation cross polarisation H/V 25 dB
    RETURN LOSS
    Return Loss 10 dB
    ELECTRICAL
    Impedance 75 Ω
    OPERATIONAL
    DC Current consumption 100 mA
    PSU/adapter INFO Optional
    Temperature - operating -20...50 °C
    CONNECTORS
    Number of inputs 4 SAT (1x quattro + 2x wideband) + 1 TERR
    Number of outputs 12
    MECHANICAL
    Packing QTY 1
    Packaging Height 0,058 m
    Packaging Width 0,260 m
    Packaging Depth 0,354 m
    Packaging Volume 0,005 m3
    Net Weight 1,460 kg
    Tara Weight 0,260 kg
    Total Weight 1,720 kg
    Remarks SKY UK, EN50607, EN50494 (automatic selection)
